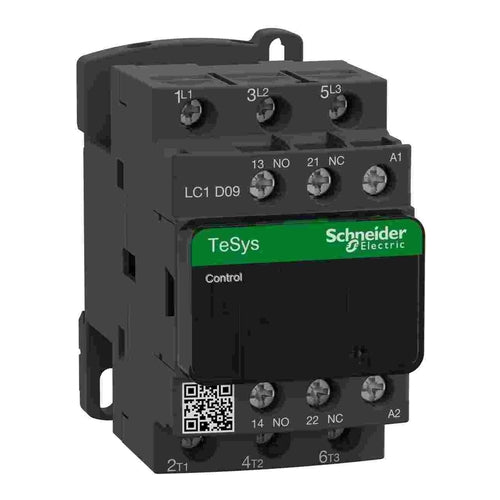

• TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V).
• 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.
• Operating rates until 3600 cycles/hour and environments until 60°C
• DIN-rail mounting or screw fixing.
Specifications
• contactor application: Motor control / Resistive load
• Poles description: 3P
• [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz / Power circuit: <= 300 V DC
• [Ie] rated operational current: 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit / 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit / 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
• Standards: CSA C22.2 No 14 / EN 60947-4-1 / EN 60947-5-1 / IEC 60947-4-1 / IEC 60947-5-1 / UL 508 / IEC 60335-1
• Motor power kW: 2.2 kW at 220...230 V AC 50/60 Hz (AC-3) / 4 kW at 380...400 V AC 50/60 Hz (AC-3) / 4 kW at 415...440 V AC 50/60 Hz (AC-3) / 5.5 kW at 500 V AC 50/60 Hz (AC-3) / 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) / 2.2 kW at 400 V AC 50/60 Hz (AC-4) / 2.2 kW at 220...230 V AC 50/60 Hz (AC-3e) / 4 kW at 380...400 V AC 50/60 Hz (AC-3e) / 4 kW at 415...440 V AC 50/60 Hz (AC-3e) / 5.5 kW at 500 V AC 50/60 Hz (AC-3e) / 5.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
