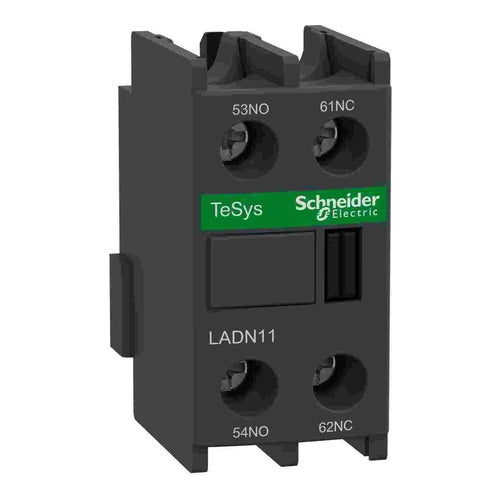

• TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD.
• Provides 1NO+1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals.
• Clip-on front mounting.
Specifications
• Range compatibility: TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
• Pole contact composition: 1 NO + 1 NC
• Contacts operation: Instantaneous
• [Ue] rated operational voltage: 690 V AC 25...400 Hz
• [Ie] rated operational current: 6 A at 120 V AC-15 / 1.04 A at 690 V AC-15 / 0.55 A at 125 V DC-13 / 0.1 A at 600 V DC-13
• [Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1 / 600 V conforming to UL / 600 V conforming to CSA
