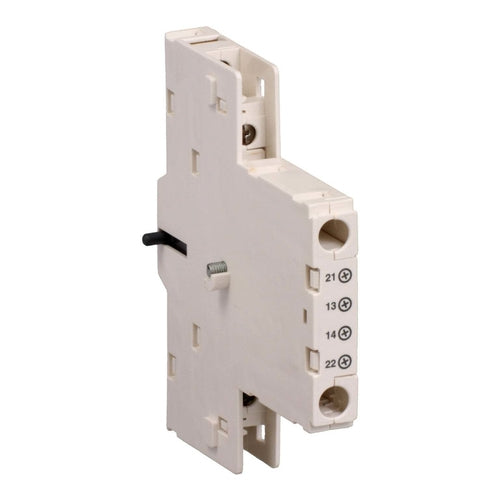

• TeSys GV auxiliary contact block, for motor circuit breakers GV3
• 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC.
• To be installed on eright-hand side of the circuit breaker.
• Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
• Product or component type: Auxiliary contact block
• Product compatibility: GV3ME
• Mounting location: Right side
• Pole contact composition: 1 NO + 1 NC
• [Ui] rated insulation voltage: 600 V conforming to UL 508 / 690 V conforming to IEC 60947-1 / 600 V conforming to CSA C22.2 No 14
• [Ue] rated operational voltage: 48...690 V AC / 24...240 V DC
• [Ith] conventional free air thermal current: 6 A
• Protection type: GB2CB... circuit breaker / GG fuse 10 A
