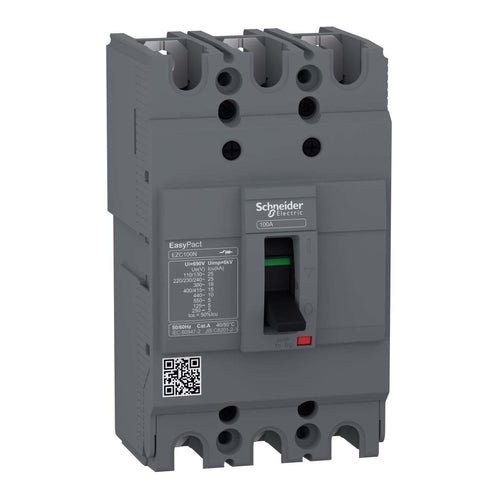

• EasyPact EZC100N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations.
• he breaking capacity (Icu) is 15kA rms at 415VAC 50/60Hz.
• The operational voltage is 550V AC 50/60Hz or 250V DC.
• trip unit provides fixed overload and instantaneous protections.
• The degree of protection is IP40 for direct rotary handle, and IP54 for extended rotary handle.
Specifications
• Device application: Distribution
• Poles description: 3P
• Protected poles description: 3t
• Network type: DC / AC
• Network frequency: 50/60 Hz
• [In] rated current: 15 A at 40 °C
• [Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
• [Ue] rated operational voltage: 550 V AC 50/60 Hz conforming to IEC 60947-2 / 250 V DC conforming to IEC 60947-2
• Standards: EN/IEC 60947-2 / JIS C8201-2-2 / GB/T 14048.2 / EN/IEC 60947-1
• Breaking capacity: 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 / 15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 / 18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 / 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 / 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 / 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2 / 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2 / 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
