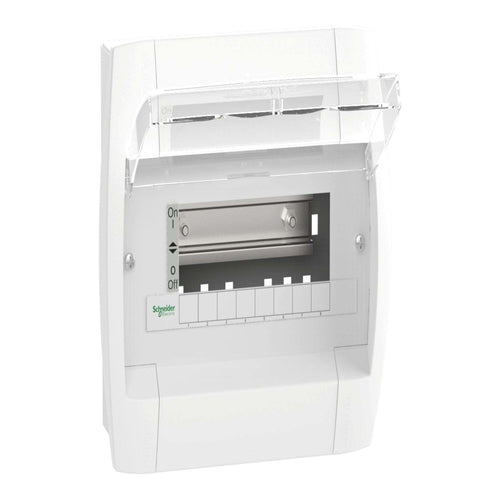

• Suitable for flush and surface mounting, Single phase distribution board.
• The number of ways is 8 and 1 Row. enclosure, DIN rail, earthing bar & Neutral bar are provided.
• Made of electro galvanized steel.
• The degree of protection is IP40 conforming to IEC 60529.
• This enclosure is Compliant with IEC 61439-3 standards.
Specifications
• Device application: Distribution board
• Number of ways: 8 ways
• Provided equipment: Enclosure, neutral bar, earthing bar, pan assembly, DIN rail
• [In] rated current: 100 A
• Rated voltage: 220 V AC 50/60 Hz
• Network number of phases: 1 phase
• enclosure mounting: Flush
• Door type: Plain curved door
• Enclosure material: Electro galvanized steel
• Dimensions: (W) 239mm x (H) 73mm x (D) 208mm.
• IP degree of protection: IP40 conforming to IEC 60529
• Standards: IEC 61439-3
