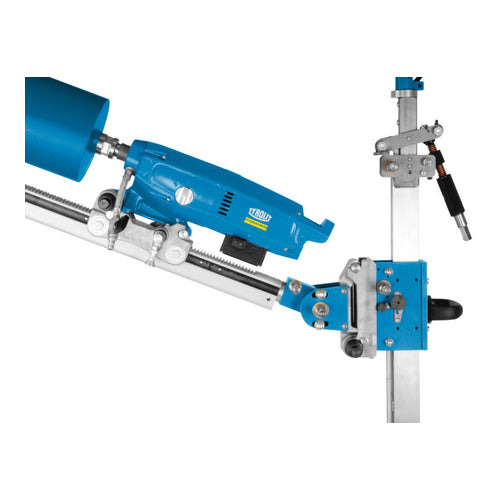

• Drilling holes in walls, ceilings and floors is child's play thanks to intelligent design with drilling and gripping column that can be rotated by 360°.
• Time-saving and material-protecting drill rig attachment using innovative telescopic clamping system.
• Quick and reliable drill motor installation using well-tried.
• ModulDrill quick change clamping system.
• Convenient operation using two-speed feed gearbox.

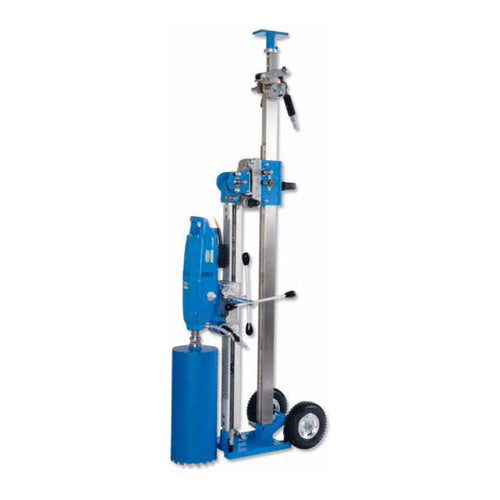

• Problem-free transportation using integrated undercarriage.
• Additional flexibility from extending drilling column for long lead-in holes.
• Universal deployment thanks to wide range of adjusting facilities.
• Large selection of drilling accessories.
• Drilling of reinforced concrete, masonry and diverse construction materials.
• Installation technology: Openings for cables, pipes and shafts- Fastening technology: Installation of openings for anchors and dowels.
• Support for wall and wire saw applications: Corner drilling to avoid overcuts or drilling holes to lead through wire.
• Stitch drilling: Alternative to cutting applications.
Specifications
• Drill Ø range : 50-260mm
• Max Drill Ø with distance plate 180mm: 360mm
• Max drill bit length : 760mm
• Suitable Drill Motor : DME33/DME36
• Length : 380mm
• Width : 250mm
• Height : 1860mm
• Weight : 48kg
