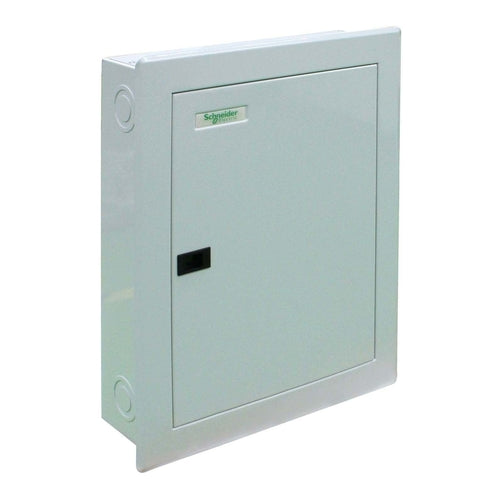

• Suitable for surface mounting, 3 phase distribution board.
• The number of ways is 12 ways and 3 Row. enclosure.
• Made of Zinc coated metal sheet 1.2 mm thick.
• The degree of protection is IP3x conforming to IEC 60529
• This enclosure is Compliant with IEC 61439-3 standards.
Specifications
• Device application: Low voltage electrical distribution
• Number of ways: 12 ways (outgoer)
• Provided equipment: Molded case circuit breaker (MCCB), neutral bar, earthing bar, pan assembly, enclosure
• [In] rated current: 100 A
• Rated voltage: 220-400 V AC 50/60 Hz
• Network number of phases: 3 phases 4 wires
• enclosure mounting: Surface
• Door type: Plain flat door
• Enclosure material: Zinc coated metal sheet 1.2 mm thick
• Width: 400 mm embedded / 410 mm outside:
• Height: 530 mm embedded: / 545 mm outside:
• Depth: 149 mm outside: / 117 mm embedded:
• IP degree of protection: IP3x conforming to IEC 60529
• Standards: IEC 439-3
