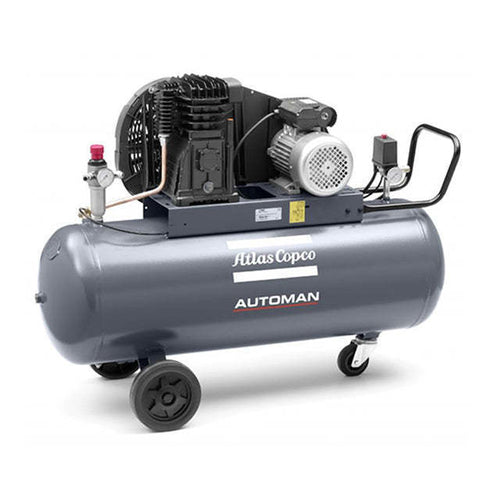

• An oil-lubricated piston compressor designed with a slow-running compressor block for long service life.
• The cast iron cylinders with low speed pistons are recognized for their durability.
• It comes with a 200 litre air receiver with manual condensate drain valve.
• On the machine you will find an adjustable pressure regulator, pressure gauges (receiver pressure and regulated outlet pressure), quick coupling for ease of use.
• There is a pressure switch with “Off” and “Automatic operation” buttons, safety valve and power cable.
Specifications:
• Displacement: 348 l/min (12.3 cfm)
• Capacity F.A.D: 192 l/min (6. cfm)
• Maximum working pressure: 10.0 bar.g (145 psi.g)
• Motor rating: 2.2kW (3hp)
• Electrical supply: 230V, 1 phase
• Electrical supply rating: 15 Amps
• Compressed air connection: G
• Dimensions (L x W x H): 1500mm x 450mm x 960mm
• Weight: 131 kg
