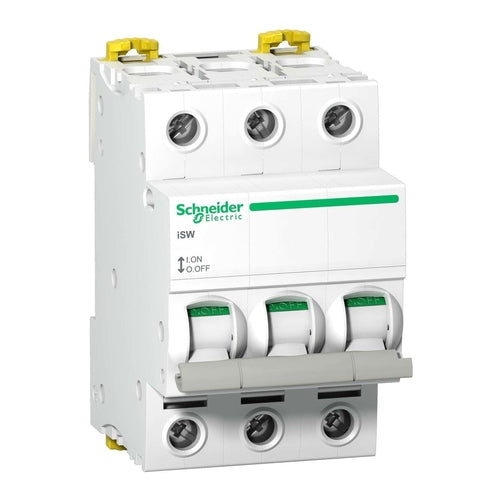

• Acti9 iSW is a modular and reliable switch disconnector.
• 3P, rated current is 63A, and operating voltage is 415VAC.
• DIN rail mountable.
• Mechanical durability goes up to 20000 cycles and electrical durability goes up to 15000 cycles.
• The degree of protection is IP20 and IP40 in an enclosure.
Specifications
• Device application: Isolation Control
• Poles description: 3P
• [In] rated current: 63 A at 415 V AC 50/60 Hz
• Network frequency: 50/60 Hz
• [Ue] rated operational voltage: 415 V AC 50/60 Hz
• [Ui] rated insulation voltage: 500 V AC 50/60 Hz
• [Uimp] rated impulse withstand voltage: 6 kV
• Mounting mode: Fixed
• mounting support: DIN rail
• Standards: EN 60947-3 / IEC 60947-3
• IP degree of protection: IP20
