• Advanced Auto-Set: includes five different wire/gas combinations and .024, .030 and .035-inch wires. The easiest welder to use just became more versatile.
• Inverter Technology: combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.

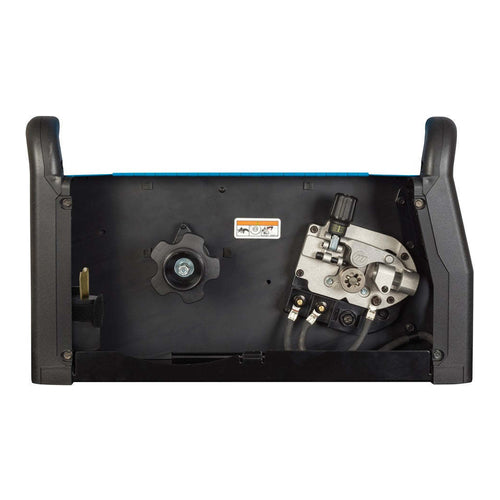

• Quick Select drive roll: makes setup quicker by offering three grooves—two for different size solid wire and a third for flux-cored wire.
• Auto Spool Gun Detect: automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
Specifications:
• PROCESSES: MIG (GMAW), Flux Cored (FCAW).
• Material Thickness: Aluminum 18 ga. (1.2 mm) - 3/8 in. (9.5 mm), Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm)
• Input Voltage: 110/115/120 V, 208 V, 220/230/240 V
• Input Hz: 50/60 Hz
• Current Type: DC
• Rated Output :150 A at 21.5 VDC, 40% duty cycle (240V),115 A at 19.8 VDC, 20% duty cycle (120V)
• Max Open Circuit Voltage: 54 VDC
• Wire Feed Speed: 1.5 m/min - 15.2 m/min, 60 IPM - 600 IPM
