• Rated Cutting Capacity: The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

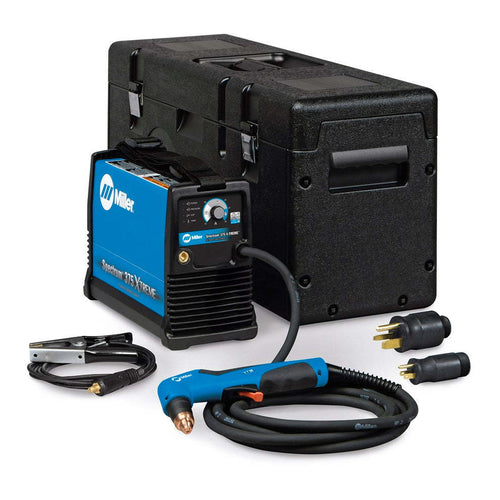

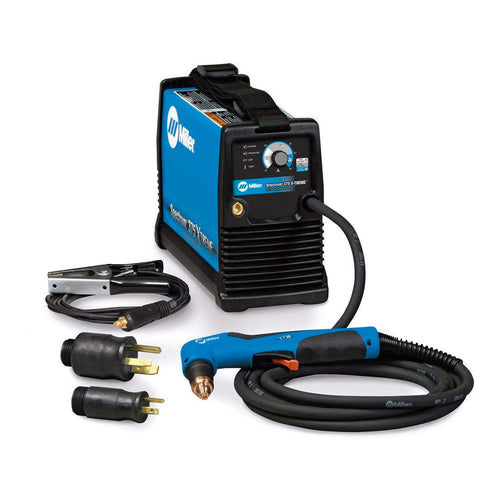

• XT30 Torch & Quick Connect Work Lead and Clamp: Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy. Comes with the ultra flexible Quick Connect work lead with smaller heavy duty clamp
• Auto-Line and MVP (multi-voltage plug): Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. The Miller multi-voltage plug (MVP™) allows connection to 120 or 240 V receptacles without tools—choose the plug that fits the receptacle and connect it to the power cord.
• Auto-Refire Technology: provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces
Specifications:
• PROCESSES: Plasma (PAC).
• Rated Output at 104 Degrees Fahrenheit: 120 V (15 A): 20 A at 88 VDC, 60% duty cycle; 120 V: 27 A at 92 VDC, 35% duty cycle; 240 V: 30 A at 92 VDC, 40% duty cycle.
• Recommended Generator Power: 4000
• Input Hz: 50/60 Hz
• Cutting Amperage Min: 14 A
• Cutting Amperage Max: 30 A
• Metal Type: {9190276B-EE44-47D3-9D9A-F3CEE1894DC2}, {35A950E3-2302-440C-9387-45563C82DAFF}, {B04BEE54-0575-4BF3-9040-C83E2EA5D629}
• Travel Speed - IPM: 15 IPM
