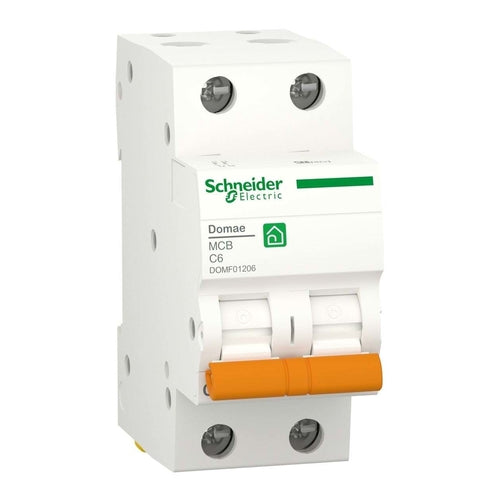

• 2P circuit breaker with 1 protected poles and 6A In rated current and C tripping curve.
• The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard
• This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation.
• Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles.
• Mounted on DIN rail for modular installation.
• The degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C.
• The Ue operational voltage is going from 230VAC.
Specifications
• Device application: Protection.
• Poles description: 2P
• Number of protected poles: 1
• [In] rated current: 6 A
• Curve code: C
• Breaking capacity: Icn 6000 A
• Network frequency: 50/60 Hz
• [Ue] rated operational voltage: 230 V AC 50/60 Hz
• Magnetic tripping limit: 5...10 x In
• Mounting mode: Clip-on
• mounting support: DIN rail
• Standards: IEC 60898-1
• product certifications: SNI
• IP degree of protection: IP20 conforming to IEC 60529 / IP40 (modular enclosure) conforming to IEC 60529
